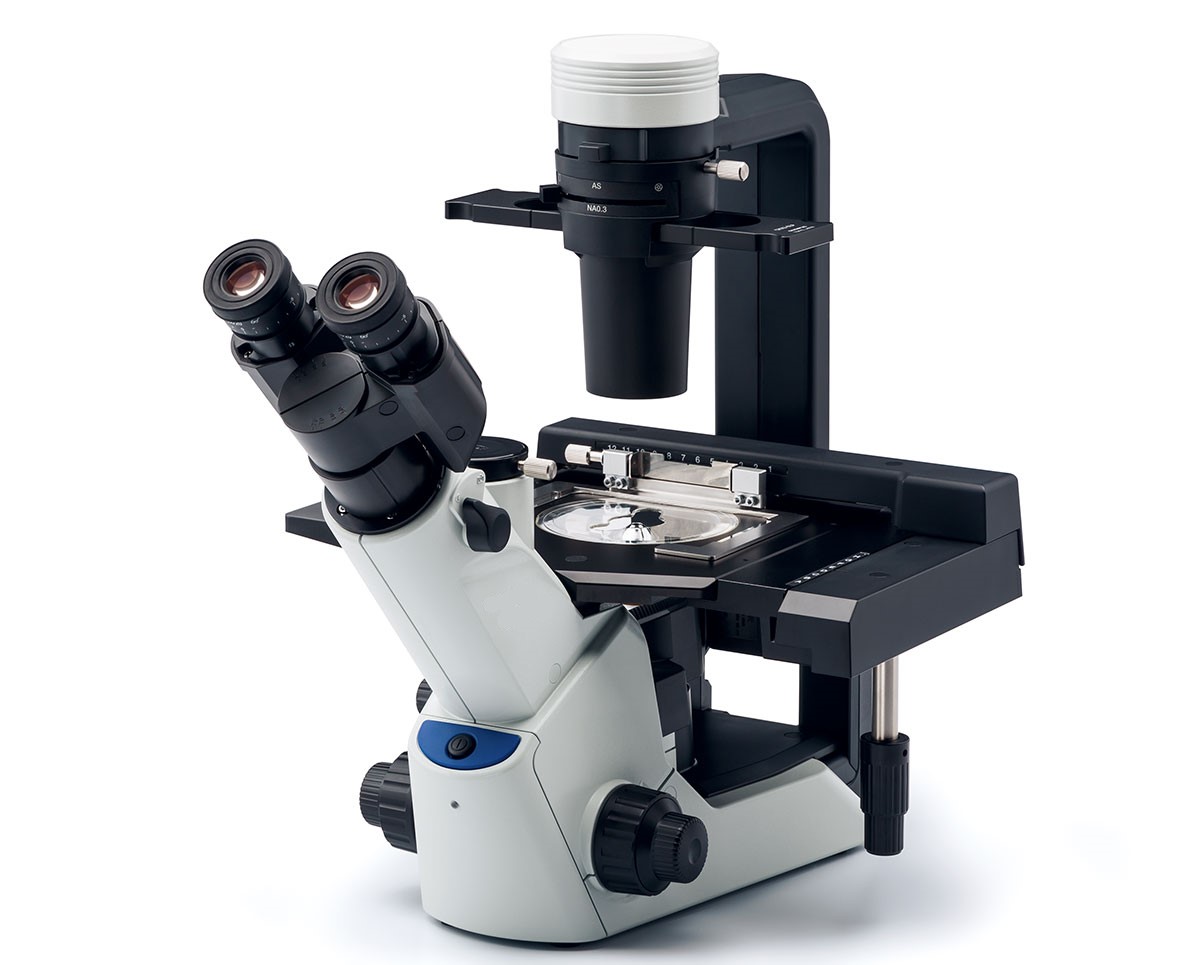

Body – Inverted trinocular microscope with integrated HC optics, LED light distribution between eye piece and camera port.
Optical- Infinity optical system.
Viewing Head- Binocular tube 45° distance 50-76mm adjustable, FN 22.
Eyepiece- One Pair of 10X/ 22mm FOV.
Nose piece- 6 positions revolving nose-piece with precise click stops.
Objective- Plan Achromat 4X (N.A.0.1/ W.D.18.5mm)
Ph1, SPF- ELWD 20X (N.A.0.45/ W.D.6.6-7.8mm)
Ph2; SPF- ELWD 40X (N.A.0.60/ W.D.2.7-4mm)
Fluorescence- LED fluorescence illumination with up to 3 positions, Control panel for controlling the illuminator and Pixel shift corrected fluorescence filters.
Mechanical Stage- Double layers mechanical stage, 120mmx85mm with auxiliary stage holder, 35mm dish.
Condenser- N.A 0.55 WD 0.27mm with positions for DIC, PH and built in iris diaphragm.
Holder- Universal plate holder, glass slide, petri dish, hemocytometer and suitable clamper.
Focusing System- Coaxial coarse & fine focusing adjustment with rack and pinion mechanism Fine focusing.
Fluorescence attachment- Phase ring for 20x, 40x objectives, Immersion oil Non Fluorescence 30cc.
Observation- Brightfield, Epifluorescence.
Compatible consumables- Flasks (T25, T75, T225), multi-well plates (6, 12, 24, 48, 96, 384 wells),Dishes (35mm,60mm, 100mm), Chamber slide, Glass microscopy slide.
Certifications- CE, ISO:9001, ISO:13485 & FDA.
Technical Details
* Image merge, bright field and 3 fluorescent images. * Data storage 2000 images, 16GB internal memory. * Data export by 2 USB ports. * Focusing mechanism Coarse and fine, manual. * Image capture Monochrome camera, 12-bit CMOS, 5 megapixels. * Image file types JPEG, TIFF, RAW. * Motorized stage 6mm travel in X, Y direction, touch screen. * Touch screen with anti-glare and anti- finger print treatment, 1280x768 pixels image resolution, 80-180° angle. * Four imaging channels Brightfield and three fluorescent channels. * Blue channel Ex: 355/40 nm, Em: 433/36 nm * Green channel Ex: 480/17 nm, Em:517/23 nm * Red channel Ex: 556/20 nm, Em: 615/61 nm * Illumination light sources. * UV LED for Blue channel. * Blue LED for Green channel. * Green LED for Red channel. * Consumables- Flasks (T25, T75, T225). * Multi-well plates (6, 12, 24, 48, 96, 384 wells). * Dishes (35mm,60mm, 100mm). * On-board software Stand-alone- Yes, Android operating system; PC is not required for operation.
