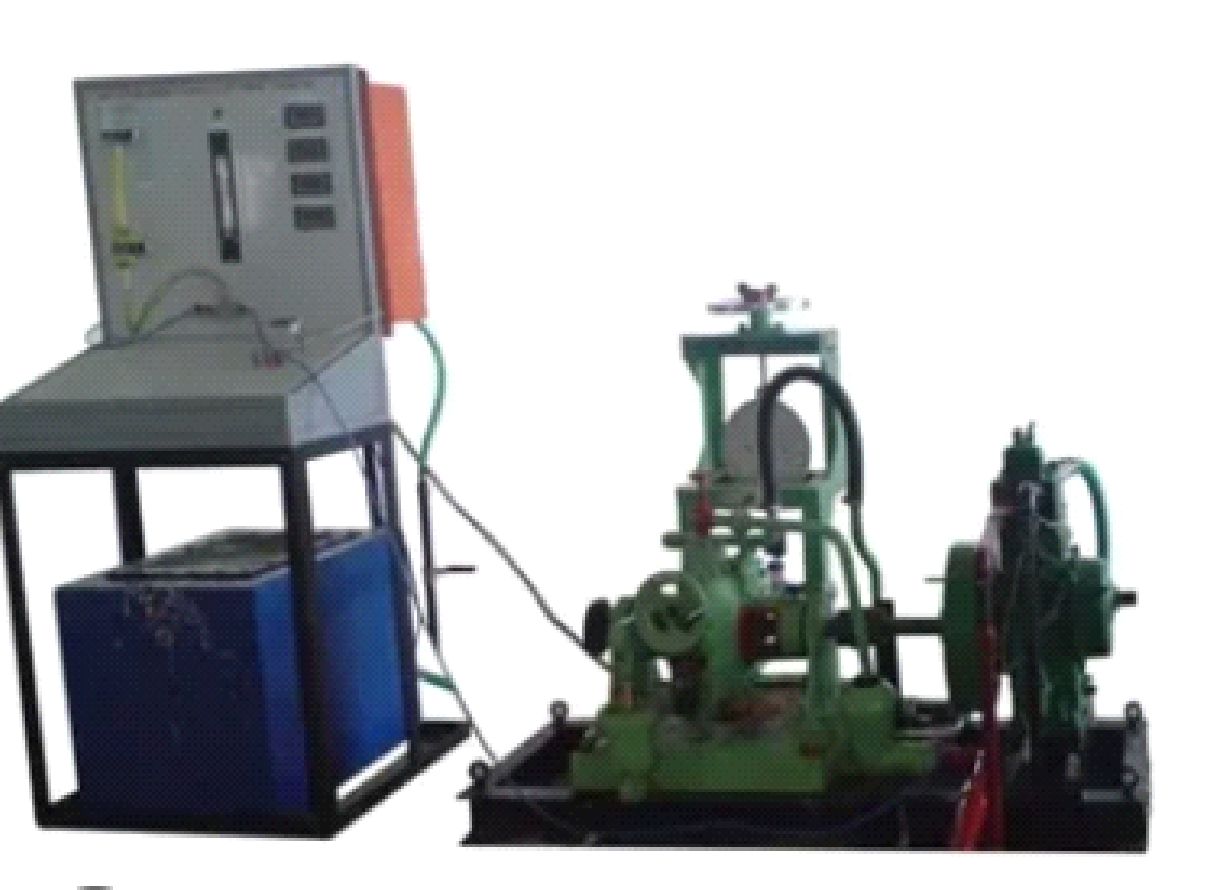

1. Engine: 4-stroke, diesel engine, water cooled , 5 hp capacity Loading: Mechanical rope brake, electrical loading or eddy current dynamo meter Change of compression ratio facility by engine head tilt mechanism with pre calibrated compression ratio scale
2. Instrumentation: RPM indicator, temperature indicator, fuel flue burette, mono meter with air box fitted with orifices plate, load indicator & diesel tank mounted on control panel
3. Rota meter for measurement of water flow rate to engine head Exhaust gas calorie meter for heat balance sheet
4. Engine & dynamo meter mounted on MS channel sturdy frame with anti vibration mount
