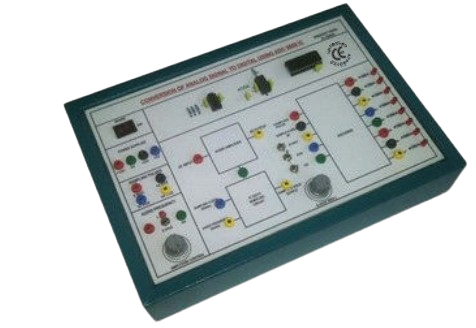

Analog to Digital Signal Convertor Kit

AGN-080A
Salient Features :
Front panel built with high class insulated Printed Circuit Board sheet
with well printed circuits and symbols.
Connections are brought out through 2mm Colored Sockets.
Patch Cords 2mm.
The trainer is housed in ABS Plastic cabinet.
Size of the trainer set 14” x 10”
Speciication :
Inbuilt circuit : Uses 8 bit ADC-0809 monolithic C-MOS device with in- built 8 channels
Multiplexer.
Output indicators : 8 LED’s are provide front on the board to digital value of the input
analog signal.
Input DC voltage ranges : 0 to 5V
Voltmeter : Analog/ Digital
Complete operation : A/D converter on one setup.
Main power supply : 220V AC/ 50 Hz
