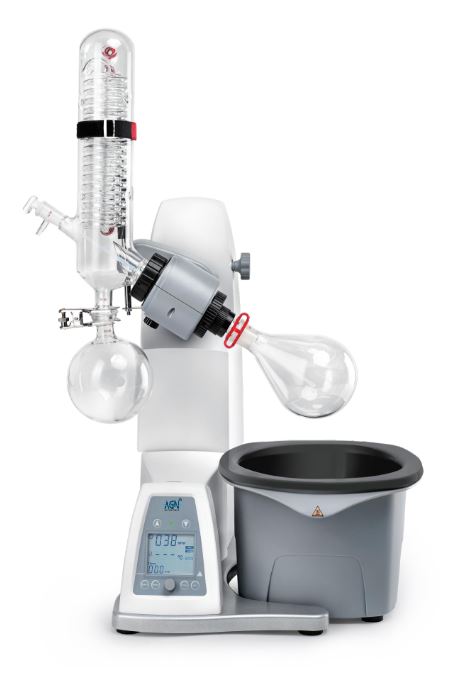

It is highly used in chemical industries, pharmaceutical industries and also higher learning institution
Features
• Digital LCD display of both rotation speed and heating temperature allows for optimal control of all distillation processes
• Automatic motor lift releases the evaporating flask to a safe position in case of power failure
• 5L heating bath with wide temperature range from room temperature to 180°C Water/oil heating mode can be changed only through a switch
• Overheating protection temperature at 220°C
• Boil-dry protection, automatically power off if heating without water/oil in the heating bath
• Speed range from 20 to 280rpm, and interval operation in clockwise and anticlockwise directions for drying process
• Condenser (cooling surface 1700cm²) with excellent cooling effect
• Ejection mechanism ensures easy removal of evaporating flask
• Double spring sealing ring made of PTFE provides an excellent sealing performance
• Optional glassware with explosion proof film available
Specification :
Evaporating Flask Volume : 50-5000mL(Optional Thickened glass axis compatible with 5L evaporating flask)
Motor Type : Brushless DC motor
Speed Range : 20-280rpm
Display : LCD(speed, temperature, time)
Direction of Rotation : Clockwise and counterclockwise
Heating Temperature Range : Room temp. to 220℃
Control Accuracy : water: ±1℃ oil: ±3℃
Evaporation capacity : Max.1.56L/h(H2O)
Heating Power : 1500W
Lift stroke : Motorized 150mm
Timer : Yes
Time Setting Range : 1-999min
Dimension[D×W×H] : 465×457×583mm
Weight : 15kg
Permissible Ambient Temperature : 5-40°C
Permissible Relative Humidity : 80%RH
Protection Class : IP20
USB Interface : Yes
Voltage/Frequency : 200-240V, 50/60Hz
Power : 1500W
Optional Add-ons (Seals and other Accessories) :
vacuum seal（PTFE+Viton）
Evaporation bottle spring
Evaporation flask clip(red) NS29/42
Evaporation flask clip(green) NS24/40
Rotary Evaporator transparent safety shield
Flask holder(50mL-1000mL)
Flask holder(1L-20L)
