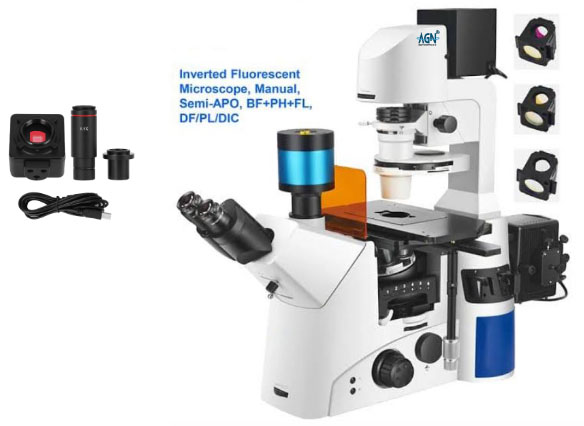

Specification :-
Nosepiece : 4 position B DIC
Illumination Transmitted : LED 10W
Eyepieces : Encoded 4 position Nosepiece and 10x with FOV 20 mm or FOV 23 and diopter
adjustment eyepieces facility on both eyes for brightfield, darkfield, phase contrast
and support DIC as well.
Stage : Mechanical XY Stage with specimen holders for Multi-well plate’s/Petri
dishes/Slides/culture flasks.
Objectives : Suitable for Bright-field /Phase Contrast & Fluorescence imaging.
Magnification : 10x/0.25 PH1 FWD 3-4 mm ; 20x/0.30 PH1 FWD 3.5-4.5mm & 40x/0.40-5.0 FWD
2.0-2.2 mm .
Fluorescence : Filter UV-For DAPI, Hoechst, Alexa Fluor 350. Filter Blue- for Rhodamine123,
Fluo3,FITC/ethidium bromide. calcium green, Alexa488. GFP, Oregon green. Filter ~
Green- for TRITC. PE.Cy3. Alexa546,555.
Digital Camera : 5 Mega Pixel cooled digital camera with CMOS sensor technology.
Software : Imaging on PC, bar insert option, Annotation, Shading Correction, image overlay for
Fluorescence & Intensity Measurement. Image enhancement through brightness,
contrast, smooth/sharpen, background subtraction, shading correction, white balance.
PC Configuration : Core i5 Processor ‘3th Gen: RAM 16 GB minimum; 2 TB HDD; 2GB Nvedia Graphic
Card ; minimum Display resolution 1920×1024 or larger. 32-bit; Drive DVD-ROM
drive; TFT LED Screen 23 inch Monitor; Multimedia Kit.
OS : Windows 10.
High resolution, pixel size 2.0pm X 2.0pum or 13 mm diagonal .
