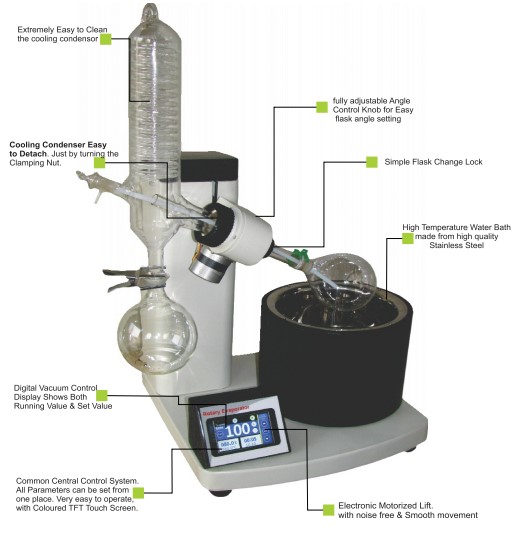

ROTARY VACUUM EVAPORATOR WITH RECIRCULATING CHILLER AND VACUUM PUMP

TECHNICAL SPECIFICATIONS
The system include a motorized lift/handle with non-slip feature censoring safety by
preventing scalding from the bath liquid.
Rotary vacuum evaporator equipped with a 3.5-inch Digital LCD display for the heating bath.
Vertical condenser with surface area 1400 cm2.
Motorized lift/hand lift capable of reaching 155 mm or more.
Better Metal base Heating bath supported.
Detachable panel with optional extension cable
Standby button to halt all functions and elevate the evaporating flask from the heating bath.
A heating bath with a diameter of 255mm, ± 5mm, and a volume capacity of 4.5 L,
capable of reaching temperatures up to 200 ºC & Secondary temperature cuto ff250 ºC.
Equipped with a drain port for removing hot water or oil to prevent splashes and scalding.
Receiving flask capacity one liter fitted with a ball joint.
The temperature control for the heating bath provided be electronic/digital.
Clamping sleeves for easy removal of vapor tube to avoid breakage.
Vapour tube with sleeve for easy removal and cleaning.
Splash water and dust protected detachable panel.
Locking facility for set temperature and rotation speed.
Construction material for the bath must be stainless steel AISI 316L.
Scale of rotation speed 20-270 RPM.
It must have a standby function and residual heat warning for heating bath temp. 50 °C.
Separate operating knobs for adjusting heating & rotational.
Borosilicate Glass Assembly with double coiled condenser.
Equipped with a rotation speed indicator controlled electronically with LED display.
Brushless DC motor with electronic speed control.
Sample flask capacity Provided be 50 ml to 5 lts.
Dimensions with glassware set 740 X 490 X 850mm (W X DX ±10mm.
The system must be new and not refurbished.
Easy-Clip mechanism for convenient attachment, a clamping sleeve, and easy removal of
both the vapor duct and evaporation flask.
CIRCULATING WATER CHILLER AND VACUUM PUMP
