Technical Specifications:

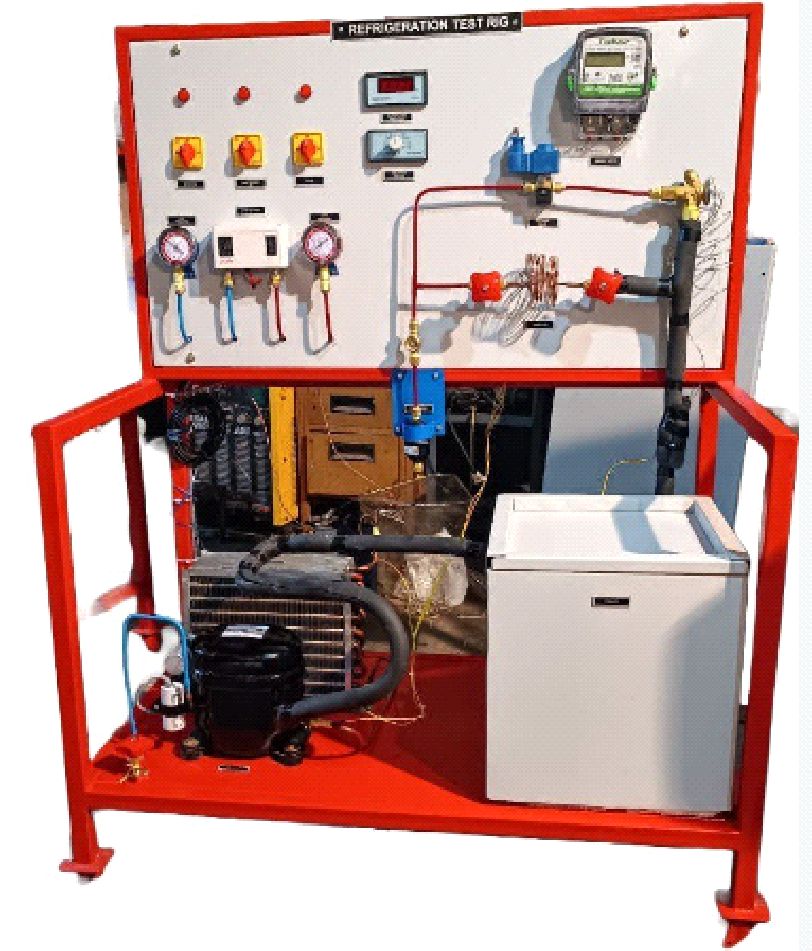

- COP of Vapor Compression System Test rig Determination of C.O.P of a Vapor Compression system. 1/3HP capacity Trolley mounted unit with caster wheels
- Control Panel: Stand Alone Metallic powder coated panel with Caster Wheels.
- Compressor: Hermetically Sealed, Reciprocating type 1/3 HP with Thermostat Emerson/LG/Voltas/ Equivalent.
- Condenser : An air cooled condenser of suitable Capacity with Fan
- Evaporator: An SS, FRP coated copper coiled vessel housed in a metallic chamber with proper insulation
- Refrigerant: Freon R-134A
- Energy meter : Energy meter 2.5- 5 Amps, Jaipur Make/equivalent
- Temperature Indicator : Digital Temperature Indicator,-50 to 150°C with TSS
- Thermocouples: Teflon coated Cr –Al (K-type)-5 no.
- Flow Visualization : Sight Glass
- Gauges : Pressure and Compound gauges for HP and LP
- Stop Watch: Digital, 1/10 of a second, Racer/Pacer Make
- Experimental Capability : Actual , Theoretical COP
- Manual : Self-explanatory Instruction manual, & 134A chart
